Facility & Equipment
5 Feet Decoiling Shearing Cut-To Length Line
- Thickness:
0.25mm ~ 3.0mm - Width: 300mm ~ 1600mm
- Maximum weight of pallet:2.5MT
- Jet-ink marking
- PE/ PVC / Laser PVC / Optic Fiber Laser PVC/ Paper interleave
5 Feet Slitting Line
- Thickness: 0.25mm ~ 6.0mm
- Width: 87mm ~ 1600mm
- ID: 508mm
- OD: 800mm (Min) ~ 1250mm (Max)
- Weight: 10000 KG (Max)
- Jet-ink marking
- PE/ PVC / Laser PvC / Optic Fiber Laser PVC/ Paper interleave
Narrow Slitting Line
- Thickness:
CR: 0.3 ~ 3.0
HR: 2.5 ~ 6.0 - Width: 10mm (Min)
- PE / PVC / Laser PVC / Optic Fiber Laser PVC
- Product: stainless steel narrow strip

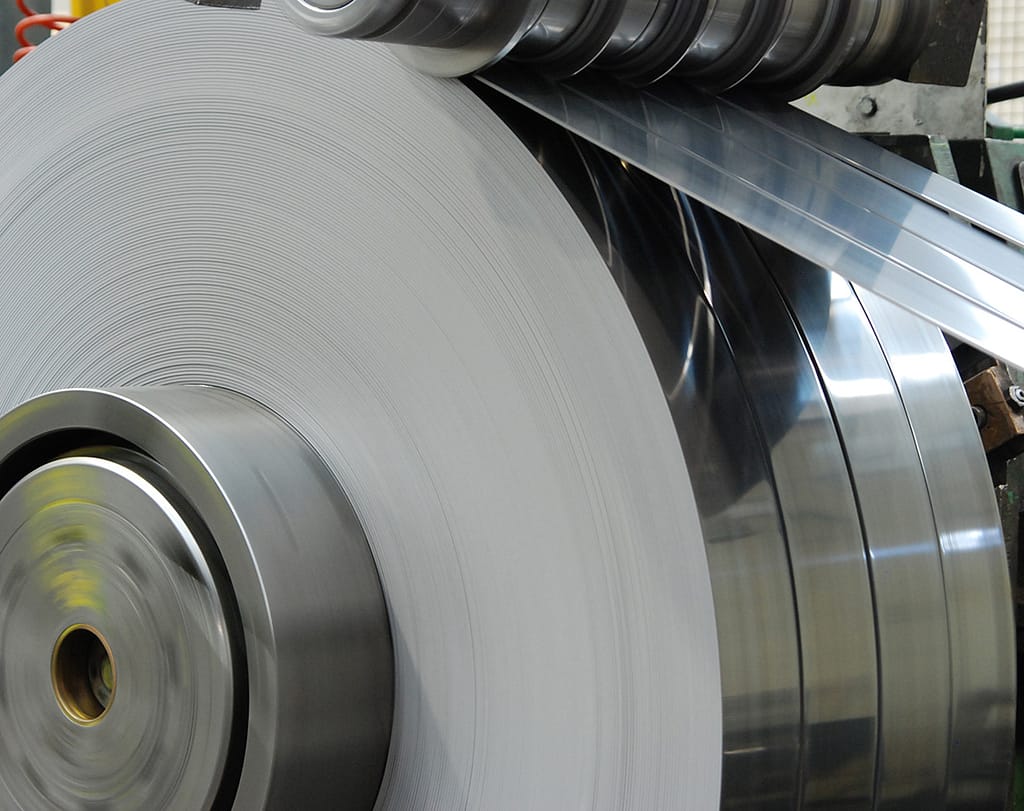

Narrow Cut-To-Length Line
- Thickness: 0.25mm ~ 3.0mm
- Width: 100mm ~ 600mm
- PE / PVC / Laser PVC / Optic Fiber Laser PVC
- Product: stainless steel narrow blank

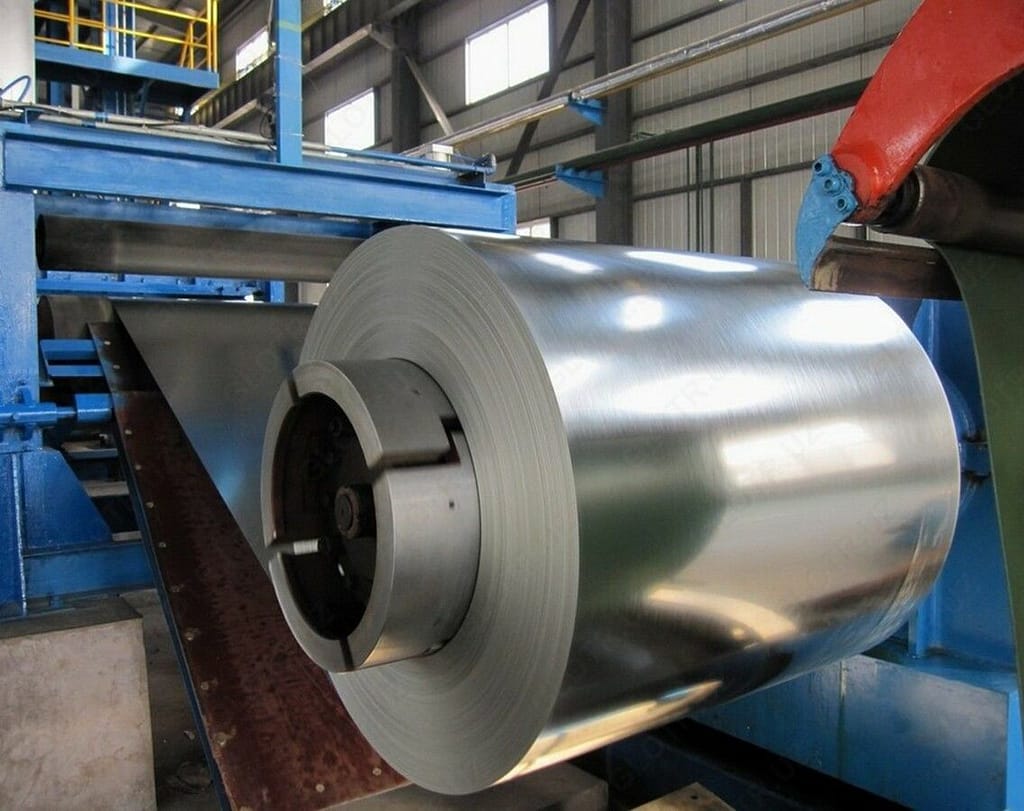

Brushing Line Coil-To-Coil
- Thickness: 0.4mm ~ 3.0mm
- Width: 1000mm ~ 1600mm
- Finish: No.4 / HL
- Oil base polishing both sides polishing
- PE / PVC / Laser PVC / Optic Fiber Laser PVC /Double PVC / Paper interleave

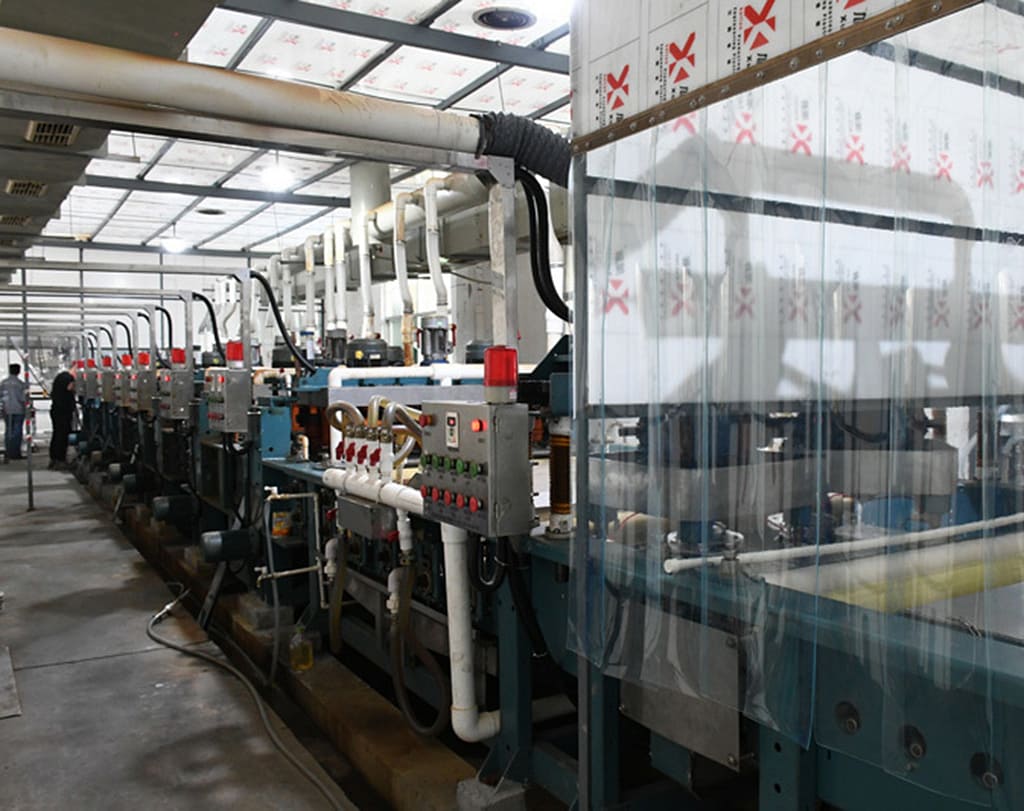

No.8 Stainless Steel Sheet Polishing Line
- Width: ≤1530mm
- Length: ≤6000mm
- Thickness: 0.4mm ~ 3.0mm
- Finish:
#6 Polishing / #8 Mirror / Super Mirror - PE / PVC / Laser PVC / Optic Fiber Laser PVC

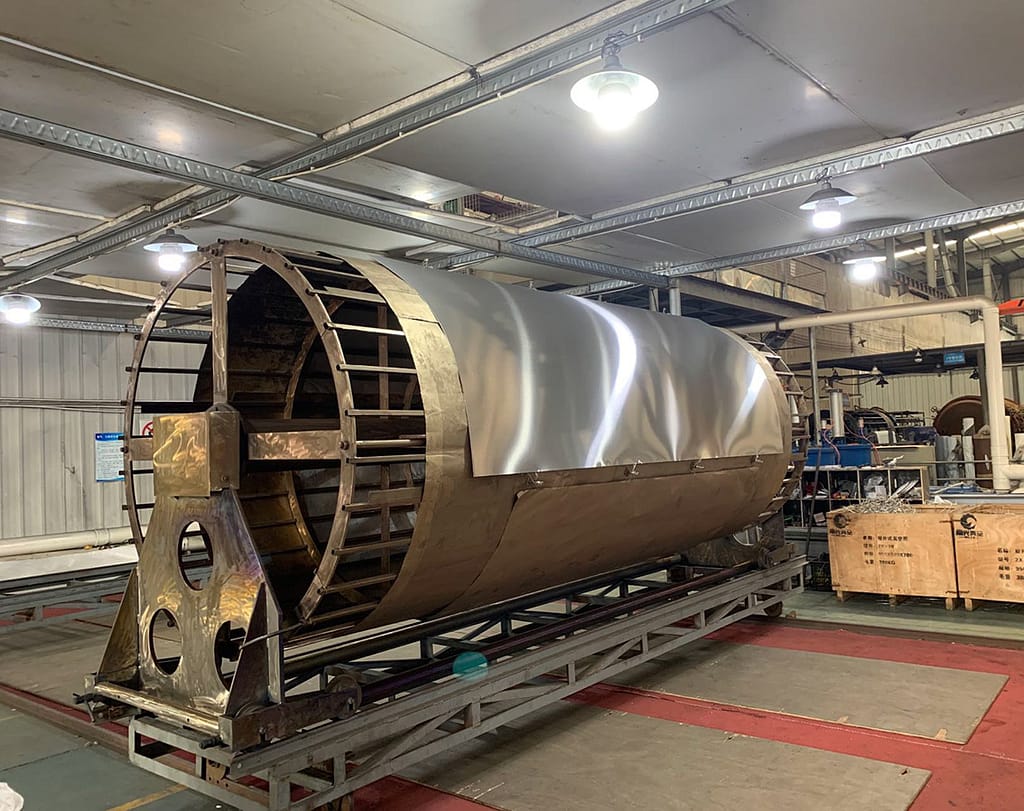

Horizontal Stainless Steel Sheet PVD Coating Line
- Width: ≤1530mm
- Length: ≤6000mm
- Thickness: 0.4mm ~ 3.0mm
- Colors custom available according to control samples

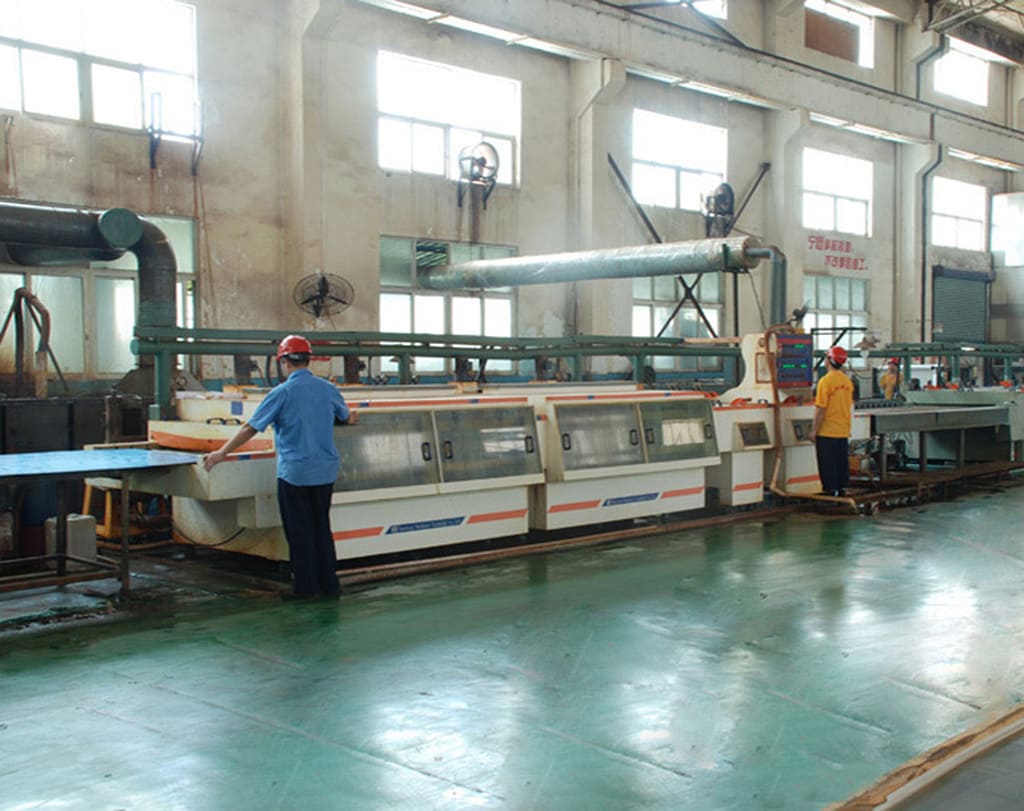

Stainless Steel Sheet Etching Process Line
- Width: ≤1530mm
- Length: ≤4500mm
- Thickness: 0.4mm ~ 3.0mm
- Patterns custom/Deep etched available
